TYPE TIL30 5 X 7 ALPHANUMERIC DISPLAY

D1033, MAY 1971—REVISED MARCH 1983

SOLID-STATE DISPLAY WITH RED TRANSPARENT PLASTIC ENCAPSULATION

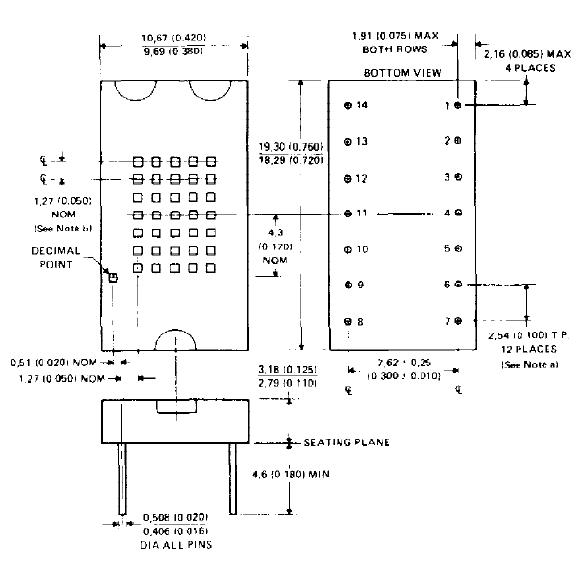

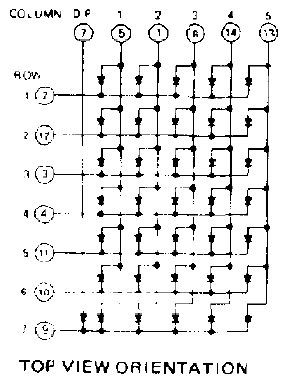

mechanical data

This assembly consists of a display chip mounted on a printed circuit board with a red molded plastic body. Multiple displays may be mounted on 11.43mm (0.450 inch) centers.

Notes:

a. The true position spacing is 2.54mm (0.100 inch) between lead centerlines. Each pin centerline is located within 0.25mm(0.010 inch) of it's true longitudinal position.

b. Vertical and horizontal spacing between centerlines of rows and columns nominally 1.27mm (0.050 inch)

(ALL DIMENSIONS ARE IN MILLIMETERS AND PARENTHETICALLY IN INCHES)

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

Reverse Voltage at 25'C Free-Air Temperature 3V
Peak Forward Current, Each Diode 100mA
Average Forward Current (see Note 1):
 Each Diode 10mA
 Total 200mA
Operating Free-Air Temperature Range 0' to 70'C
Storage Temperature Range -25'C to 85'C

operating characteristics of each diode at 25'C free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT
Iv Luminous Intensity (see Note 2) IF = 10 mA 40 110 µcd
 p Wavelength at Peak Emission 660 nm
  Spectral Bandwidth 20 nm
VF Static Forward Voltage 1.5 1.65 2 V
°VF Average Temperature Coefficient of Static Forward Voltage IF = 10 mA -1.4 mV/C
TA = 0'C to 70'C
IR Static Reverse Current VR = 3V 10 µA
C Anode to Cathode Capacitance VR = 0, f = 1Mhz 80 pF

NOTES:

1. This average value applies for any 1 ms period

2. Luminous intensity is measured with a light sensor and filter combination that approximates the CIE International Commission on illumination eye response curve.

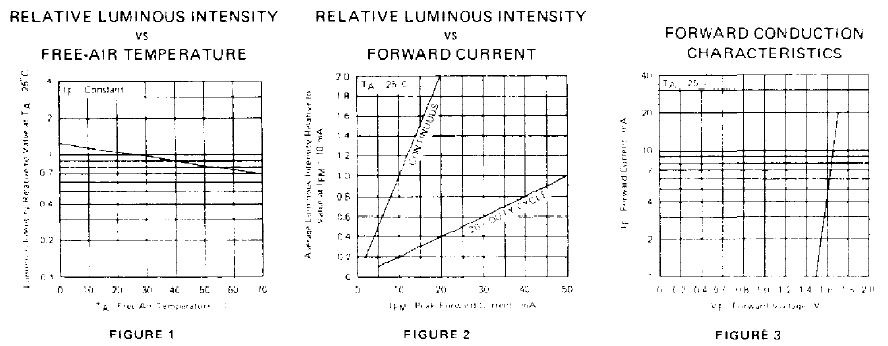

TYPICAL CHARACTERISTICS
