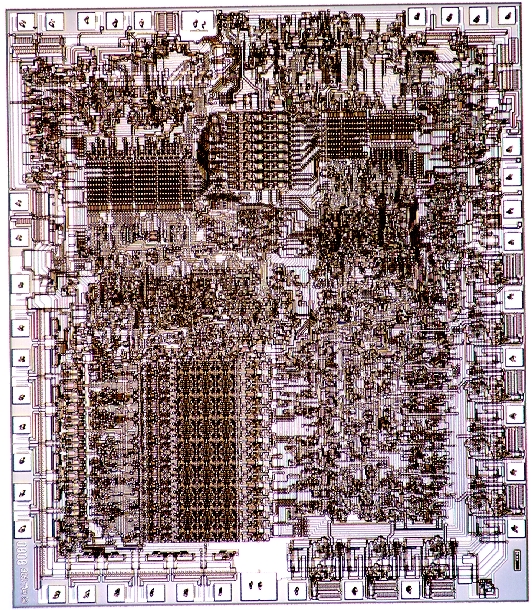

Intel 8080 CPU

Library

Novel Methods of Integer Multiplication and Division

ddd sss	Register Name	rp	Register Pair	ccc	Condition
000	B	00	BC	000	NZ
001	C	01	DE	001	Z
010	D	10	HL	010	NC
011	E	11	SP, PSW	011	C
100	H			100	PO(dd)
101	L			101	PE(ven)
110	M			110	P(lus)
111	A			111	M(inus)

The register pair SP is used with LXI and DAD. The register pair PSW is used with PUSH and POP.

Instructions

This section describes all the instuctions in the 8080A instruction set. See above for the values to substitute for sss, ddd, rp, and ccc in the descriptions below. "nnn" refers to a non-register numeric value given by the instruction operand.

Data Transfer Group
	Mnemonic	Opcode	Cycles	Flags Affected	Description
	`MOV r1,r2`	`01dddsss`	5	none	Copies the contents of register r2 to r1.
	`MOV M,r2`	`01110sss`	7	none	Copies the contents of register r2 to the byte addressed by the (HL) register pair.
	`MOV r1,M`	`01ddd110`	7	none	Copies the contents of the byte addressed by the (HL) register pair to r1.
	`MVI r1,data`	`00ddd110`	7	none	The content of the 2nd byte of the instruction (immediate data) is copied into the named register.
	`MVI M,data`	`00110110`	10	none	The content of the 2nd byte of the instruction (immediate data) is copied into the byte addressed by the (HL) register pair.
	`LXI rp,data`	`00rp0001`	10	none	The content of byte 2 and 3 of the instruction (immediate data) is copied into the named register pair.
	`LDA addr`	`00111010`	13	none	The content of the memory byte addressed by bytes 2 and 3 of the instruction are copied to register A.
	`STA addr`	`00110010`	13	none	The content of register A is copied to the memory byte addressed by bytes 2 and 3 of the instruction.
	`LHLD addr`	`00101010`	16	none	The content of the word (16 bits) at the address in bytes 2 and 3 of the instruction are copied to the HL register pair.
	`SHLD addr`	`00100010`	16	none	The content of register pair HL are copied to the word (16 bits) at the address given in bytes 2 and 3 of the instruction.
	`LDAX rp`	`00rp1010`	7	none	The content of the byte at the address found in the register pair (BC or DE only) is copied to register A.
	`STAX rp`	`01rp0010`	7	none	The content of register A is copied to memory at the address found in the register pair (BC or DE only).
	`XCHG`	`11101011`	4	none	The contents of the HL and DE register pairs are swapped.
Arithmetic Group
	Mnemonic	Opcode	Cycles	Flags Affected	Description
	`ADD r`	`10000sss`	4	Z,S,P,C,AC	The register is added to register A.
	`ADD M`	`10000110`	7	Z,S,P,C,AC	The byte addressed by the (HL) register pair is added to register A.
	`ADI data`	`11000110`	7	Z,S,P,C,AC	Instruction byte 2 (immediate data) is added to register A.
	`ADC r`	`10001sss`	4	Z,S,P,C,AC	The register and the Carry flag are added to register A.
	`ADC M`	`10001110`	7	Z,S,P,C,AC	The byte addressed by the (HL) register pair and the Carry flag are added to register A.
	`ACI data`	`11001110`	7	Z,S,P,C,AC	Instruction byte 2 (immediate data) and the Carry flag are added to Register A.
	`SUB r`	`10010sss`	4	Z,S,P,C,AC	The register is subtracted from register A.
	`SUB M`	`10010110`	7	Z,S,P,C,AC	The byte addressed by the (HL) register pair is subtracted from register A.
	`SUI data`	`10010110`	7	Z,S,P,C,AC	Instruction byte 2 (immediate data) is subtracted from register A.
	`SBB r`	`10011sss`	4	Z,S,P,C,AC	The register and the Carry flag are subtracted from register A.
	`SBB M`	`10011110`	0	Z,S,P,C,AC	The byte addressed by the (HL) register pair and the Carry flag are subtracted from register A.
	`SBI data`	`11011110`	7	Z,S,P,C,AC	Instruction byte 2 (immediate data) and the Carry flag are subtracted from register A.
	`INR r`	`00ddd100`	4	Z,S,P,AC	The register is incremented. Note that Carry is not affected.
	`INR M`	`00110100`	10	Z,S,P,AC	The byte addressed by the (HL) register pair is incremented. Note that Carry is not affected.
	`DCR r`	`00ddd101`	4	Z,S,P,AC	The register is decremented. Note that Carry is not affected.
	`DCR M`	`00110101`	10	Z,S,P,AC	The byte addressed by the (HL) register pair is decremented. Note that Carry is not affected.
	`INX rp`	`00rp0011`	5	none	The register pair is incremented as a 16-bit number.
	`DCX rp`	`00rp1011`	5	none	The register pair is decremented as a 16-bit number.
	`DAD rp`	`00rp1001`	10	C	The register pair is added to the HL register pair.
	`DAA`	`00100111`	4	Z,S,P,C,AC	Register A is adjusted to form two BCD digits as follows: (1) If the value of the least significant 4 bits of register A is greater than 9 or if the AC flag is set, 6 is added to the accumulator. (2) If the value of the most significant 4 bits of register A is now greater than 9 or if the C flag is set, 6 is added to the most significant 4 bits of register A.
Logical Group
	Mnemonic	Opcode	Cycles	Flags Affected	Description
	`ANA r`	`10100sss`	4	Z,S,P,C,AC	The register is anded with register A.
	`ANA M`	`10100110`	7	Z,S,P,C,AC	The byte addressed by the (HL) register pair is anded with register A.
	`ANI data`	`11100110`	7	Z,S,P,C,AC	The 2nd byte of the instruction (immediate data) is anded with register A.
	`XRA r`	`10101sss`	4	Z,S,P,C,AC	The register is exclusive-or'd with register A.
	`XRA M`	`10101110`	7	Z,S,P,C,AC	The byte addressed by the (HL) register pair is exclusive-or'd with register A.
	`XRI data`	`11101110`	7	Z,S,P,C,AC	The 2nd byte of the instruction (immediate data) is exclusive-or'd with register A.
	`ORA r`	`10110sss`	4	Z,S,P,C,AC	The register is or'd with register A.
	`ORA M`	`10110110`	7	Z,S,P,C,AC	The byte addressed by the (HL) register pair is or'd with register A.
	`ORI data`	`11110110`	7	Z,S,P,C,AC	The 2nd byte of the instruction (immediate data) is or'd with register A.
	`CMP r`	`10111sss`	4	Z,S,P,C,AC	The register is subtracted from register A and the result discarded; register A remains unchanged. The flags are set based on the result of this subtraction.
	`CMP M`	`10111110`	7	Z,S,P,C,AC	The byte addressed by the (HL) register pair is subtracted from register A and the result discarded; register A remains unchanged. The flags are set based on the result of this subtraction.
	`CPI data`	`11111110`	7	Z,S,P,C,AC	The 2nd byte of the instruction (immediate data) is subtracted from register A and the result discarded; register A remains unchanged. The flags are set based on the result of this subtraction.
	`RLC`	`00000111`	4	C	The contents of register A are shifted left one bit. Both the low-order bit and flag C are set to the value shifted out of the high-order bit. (This is an 8-bit rotate into Carry.)
	`RRC`	`00001111`	4	C	The contents of register A are shifted right one bit. Both the high-order bit and flag C are set to the value shifted out of the low-order bit. (This is an 8-bit rotate into Carry.)
	`RAL`	`00010111`	4	C	The contents of register A are shifted left one bit. The low-order bit is set to the value of flag C. Flag C is set to the value shifted out of the high-order bit. (This is a 9-bit rotate through Carry.)
	`RAR`	`00011111`	4	C	The contents of register A are shifted right one bit. The high-order bit is set to the value of flag C. Flag C is set to the value shifted out of the low-order bit. (This is a 9-bit rotate through Carry.)
	`CMA`	`00101111`	4	none	The contents of register A are complemented: the 1 bits become 0 and the 0 bits become 1.
	`CMC`	`00111111`	4	C	The Carry flag is complemented.
	`STC`	`00110111`	4	C	The Carry flag is forced to 1.
Branch Group
	Mnemonic	Opcode	Cycles *	Flags Affected	Description
	`JMP addr`	`11000011`	10	none	Control is passed to the instruction at the given address.
	`J(condition)`	`11ccc010`	10	none	If the specified condition is true, control is passed to the instruction at the given address.
	`CALL`	`11001101`	17	none	The next instruction address is pushed on the stack. Then control passes to the instruction at the given address.
	`C(condition)`	`11ccc100`	11/17	none	If the specified condition is true, the next instruction address is pushed on the stack. Then control passes to the instruction at the given address.
	`RET`	`11001001`	5	none	Control is passed to the address that is popped from the stack.
	`R(condition)`	`11ccc000`	5/11	none	If the specified condition is true, control is passed to the address that is popped from the stack.
	`RST n`	`11nnn111`	11	none	The next instruction address is pushed onto the stack. Then control is passed to the instruction at address 'n' * 8. (The program counter is set to the value 0000 0000 00nn n000.)
	`PCHL`	`11101001`	5	none	The contents of register pair HL are copied to the program counter, effectively passing control to the instruction at the address in HL.
Stack, I/O and Machine Control Group
	Mnemonic	Opcode	Cycles	Flags Affected	Description
	`PUSH rp`	`11rp0101`	11	none	The named register pair is pushed onto the stack.
	`POP rp`	`11rp0001`	10	(note)	The named register pair is popped off of the stack.
	`XTHL`	`11100011`	18	none	The contents of the HL pair are swapped with the 16-bit value at the top of the stack.
	`SPHL`	`11111001`	5	none	The contents of the HL pair are copied into the SP pair.
	`IN port`	`11011011`	10	none	The port named in the 2nd byte of the instruction (immediate data) is read and the data placed in register A.
	`OUT port`	`11010011`	10	none	The data in register A is written to the port addressed in the 2nd byte of the instruction (immediate data).
	`EI`	`11111011`	4	none	The interrupt system is enabled, following the execution of the next instruction.
	`DI`	`11110011`	4	none	The interrupt system is disabled immediately.
	`HLT`	`01110110`	7	none	The processor is halted. This condition persists until the next interrupt.
	`NOP`	`00000000`	4	none	No operation is performed.

Where there are two values for cycles, the first is for the false condition and the second for the true condition.
Note: A POP instruction naming the BC, DE, or HL register pairs has no effect on the flags. A POP instruction naming the PSW affects all flags.
