This page showes you the TPS in it's parts

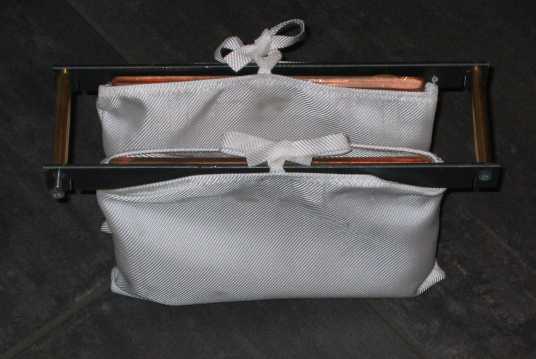

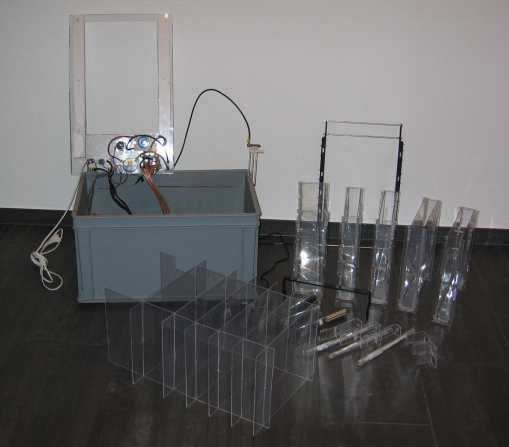

You can see here that the station consists of a plastic box, a frame set, the tanks, a swing frame to swing the PCB, the electronics, the pannel to operate the station as well as some smaller parts like holders for the heating tubes and the thermometers. The anode frame is not in the picture because I forgot it :-). You can see it here:
